High Pressure Die Casting Mold Steel Selection: How to Balance Life, Cracking and Cost

Selecting high pressure die casting mold steel is one of the hardest decisions in HPDC tooling. Everyone wants the same thing — longer mold life and more stable production — but the working conditions inside a die are complex and change over time. Very often, one property is improved at the expense of another, and a “perfect” solution only appears after several rounds of trial and error.

1. Why HPDC Mold Steel Selection Is So Difficult

Two words capture the challenge of high pressure die casting mold steel selection:

• Compromise – multiple properties are required at the same time, often in conflict.
• Variability – cavity regions see very different thermal and mechanical loads during the shot.

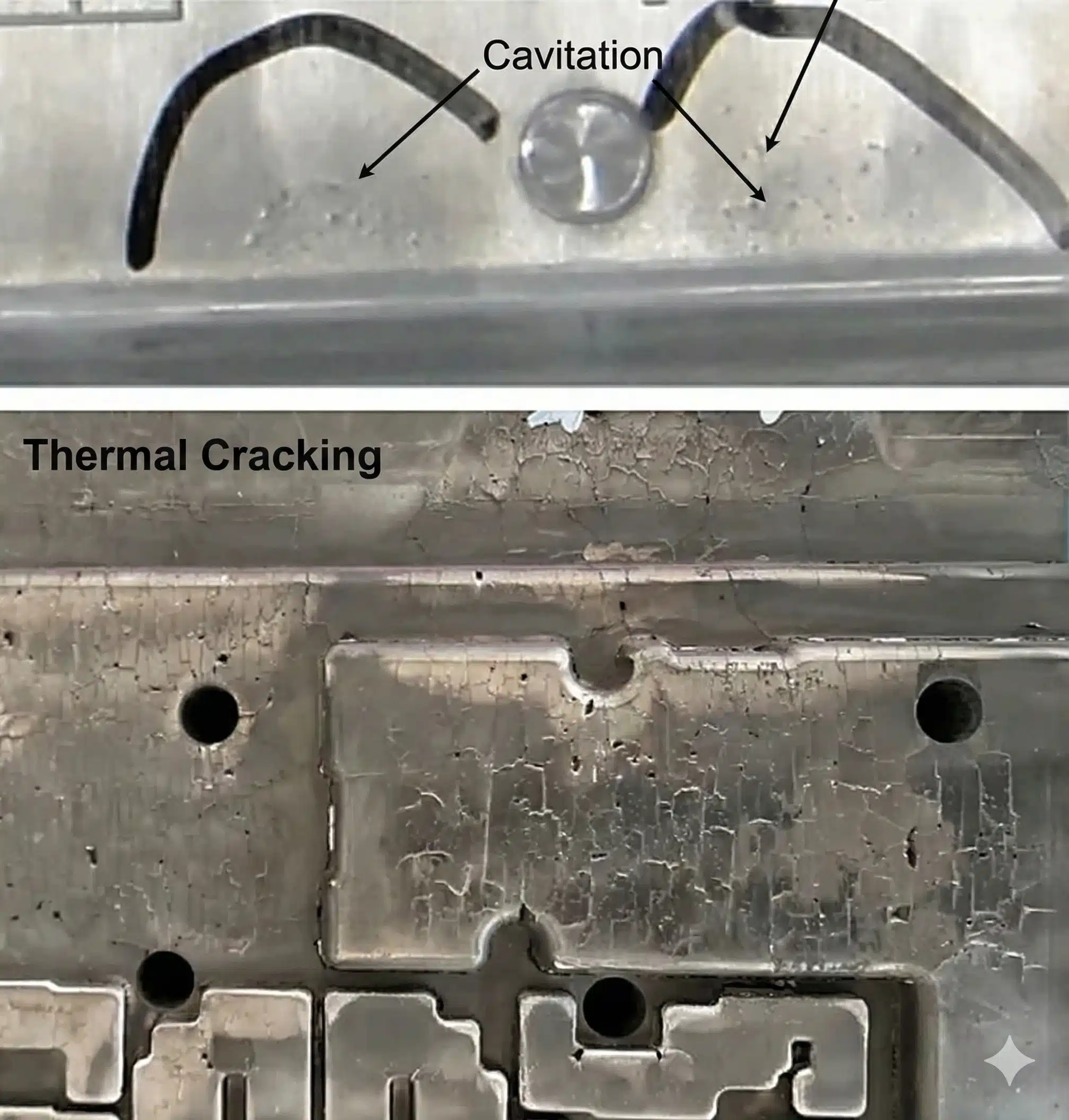

Typical HPDC mold failure modes include:

• Heat checking / thermal fatigue
• Erosion / wash-out by high-speed melt
• Cracking and chipping
• Soldering, sticking and galling with aluminum

Each failure mode “pulls” the material design in a different direction:

• Heat checking & erosion → need high hot strength, hardness and creep strength
• Cracking & chipping → need high toughness and ductility
• Soldering & sticking → need high thermal conductivity and appropriate alloy content

On top of this, we care about machinability, heat-treatment robustness and cost. Asking one steel grade to be the best in every dimension is unrealistic, which is why most commercial grades represent a compromise between properties.

2. The Hidden Diversity of Cavity Working Conditions

In many mechanical components (gears, bearings, shafts), the loading condition is relatively fixed and well understood. Material selection can be optimized around one dominant stress pattern.

A die casting mold cavity is very different:

• Even within a single cavity, local thermal and mechanical loads vary dramatically.

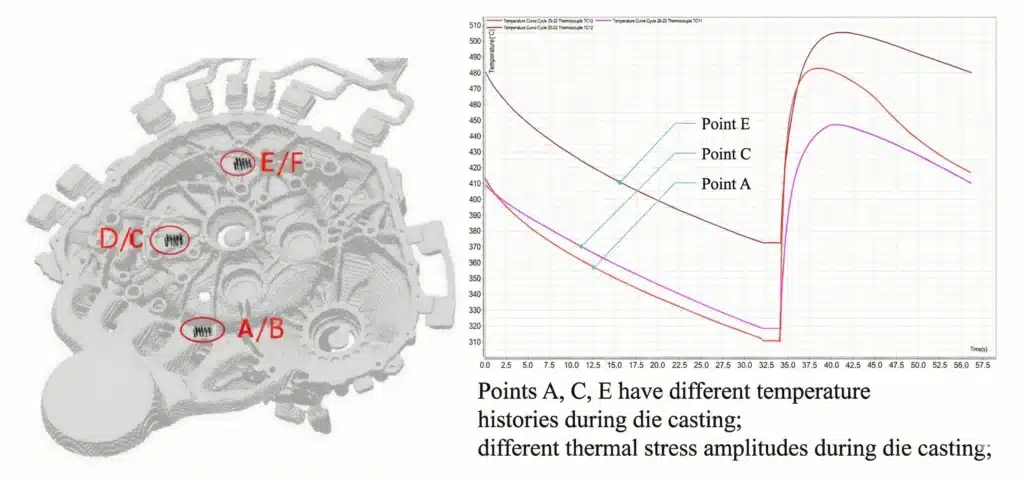

• Simulations and measurements show that instantaneous thermal stresses in some regions can be several times higher than in others, yet one single hot work tool steel is typically used for the entire insert.
• The same die design, transferred to another plant with different machines, cooling, spray pattern and process control, can show completely different lifetimes.

This means:

• A “copy” mold is not guaranteed to see the same real working conditions as the original.
• Design changes, cooling channel optimization, release agent type (water-based vs oil-based electrostatic spray), and process tuning can change local cavity temperatures and stress states by multiples, not just by a few percent.

Because the working condition is so hard to fix and predict, many users fall back to “safe” general-purpose steels, instead of tailoring high pressure die casting mold steel to local risks.

3. “All-Rounder” vs “Specialist” Mold Steels

Hot work tool steels used in HPDC roughly fall into two strategic groups:

• All-rounders (“generalists”) – balanced strength, toughness and hot strength; not the best in any one dimension, but rarely the worst.
• Specialists (“biased students”) – clearly optimized for one property (e.g., hot strength, high-temperature hardness), while sacrificing something else (often toughness or cost).

In practice:

• When the critical failure mode is clearly known and controlled, a specialist grade can significantly outperform an all-rounder at lower cost.
• When the real working condition is uncertain, general-purpose steels are safer but may waste performance or cost.

An example from the original article: for certain smartphone mid-frame dies, the geometry leads to relatively low risk of gross cracking but severe hot fatigue. Under those conditions, a high hot-strength steel such as 3Cr2W8V can deliver much longer life than standard H13-type grades, despite its inferior toughness and lower Charpy impact values.

4. Five Main Families of Hot Work Tool Steel for HPDC

Below is a simplified overview of five important hot work tool steel families and how they relate to high pressure die casting mold steel selection.

4.1 Low Hot-Strength, High-Toughness Steels

Typical grades: 5CrNiMo, 5CrMnMo, 5Cr2NiMo

• Originally developed for large forging dies under hammer or press forging.
• At 40–42 HRC they can reach very high Charpy impact energy (≈40 J or more).
• Their hot strength and temper resistance are limited, so they are rarely used as primary cavity material for aluminum HPDC, but can be useful for:
  • backing inserts
  • holders, die shoes
  • regions with lower thermal load but high risk of mechanical cracking or impact.

4.2 Medium Hot-Strength, Medium-Toughness Steels – the H13 Family

Typical grades: 4Cr5MoSiV1 (H13), W350, DAC55, DH31-EX, Dievar, TQ1 etc.

• Composition: ~5% Cr for hardenability and secondary hardening, with Mo and V carbides for hot strength.
• Typical working temperature: 500–550 °C.
• Charpy impact at around 45 HRC is usually in the 10–30 J range, depending on cleanliness and heat treatment.
• Widely used in:
  • high pressure die casting
  • hot forging dies
  • general hot work applications.

This family is the “all-rounder” backbone of HPDC mold steel: it offers a reasonable combination of hot strength, toughness, processability and cost, which is why it dominates the market.

4.3 High Hot-Strength Steels

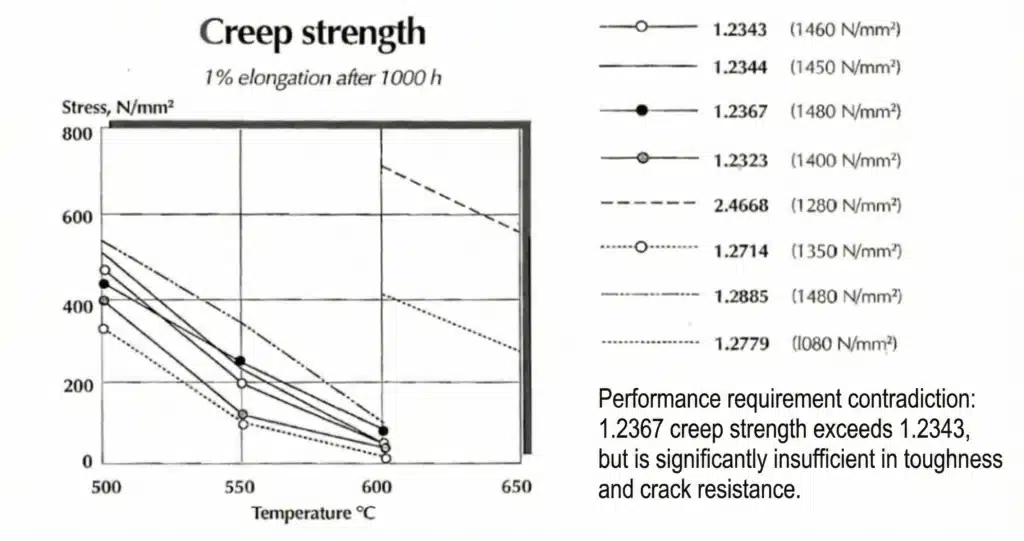

Typical grades: 3Cr2W8V, 4Cr3Mo3W2V, 5Cr4Mo2W2SiV

• Characterized by higher W and Mo contents, giving excellent high-temperature hardness and creep resistance.
• Typical working temperature: 600–700 °C for continuous hot work (hot extrusion, hot shear, hot heading).
• Usually used at 50–55 HRC; room-temperature Charpy impact is often around 10 J or less.
• Heat treatment:

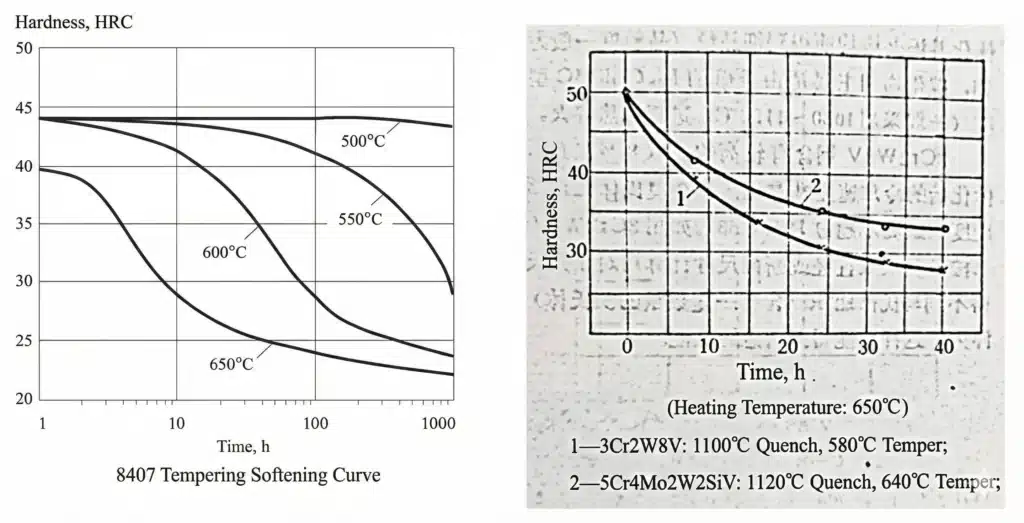

  • requires relatively high austenitizing temperature
  • may show both a 500 °C toughness trough and a “600 °C embrittlement” region during tempering.

These steels are classic specialists: superb hot strength but low toughness. In HPDC, they are better used as local inserts in regions where:

• thermal fatigue and wash-out dominate life, and
• the risk of catastrophic cracking is relatively low.

4.4 Austenitic Heat-Resistant Steels

Typical grades: Cr–Ni–Mn high-alloy austenitic steels such as Cr14Ni25Co2V, 4Cr14Ni14W2Mo, 5Mn15Cr8Ni5Mo3V2, 7Mn10Cr8Ni10Mo2V2

• Room-temperature strength and toughness are not impressive, and the cost is high.

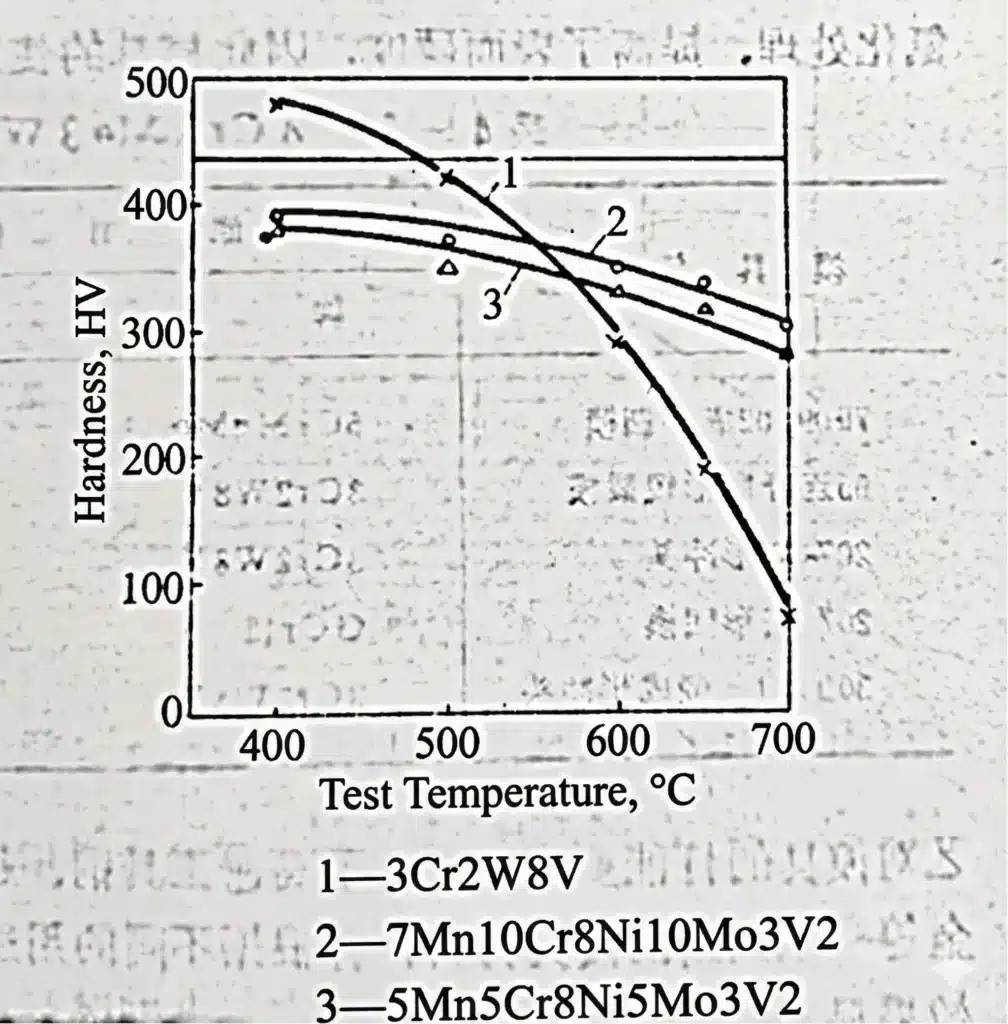

• Above 700 °C, they provide excellent high-temperature strength and oxidation resistance, which makes them suitable for:
  • glass forming molds
  • titanium alloy creep forming tools
  • some copper-based extrusion dies.

• However:
  • thermal conductivity is poor
  • coefficient of thermal expansion is high
  • they are very sensitive to rapid heating/cooling cycles and cannot tolerate strong water cooling.
• In use, tools must be preheated to ~400–450 °C and kept hot; cooling water is generally not allowed.

For mainstream aluminum HPDC, these steels are rarely used except for very special high-temperature inserts where cooling is limited and soldering or corrosion is critical.

4.5 18Ni Maraging Steels (18Ni300 Family)

Typical grades: 18Ni300, 18Ni250, 18Ni350 and similar maraging steels

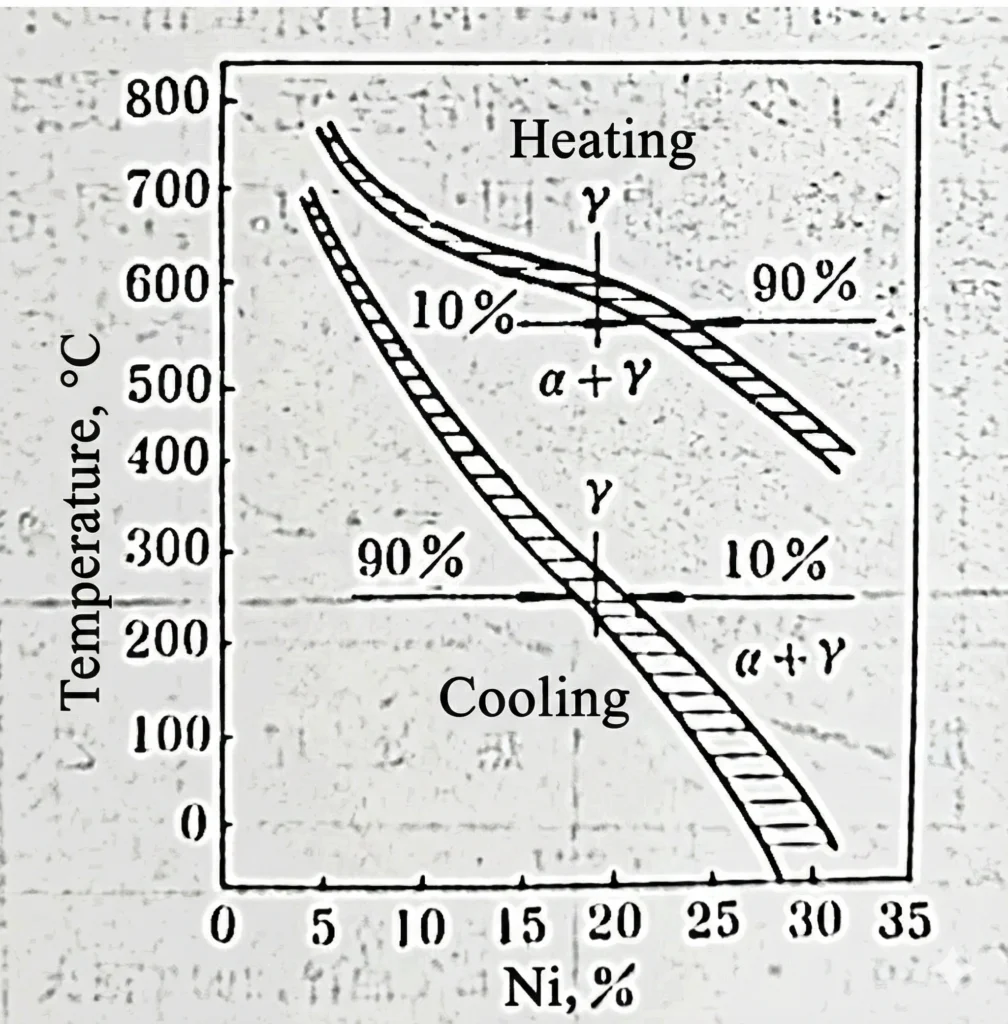

These steels use the Fe–Ni system’s ability to form martensite at ~18% Ni even at very slow cooling rates, combined with Co and Mo for precipitation hardening. Key features:

• High comprehensive mechanical properties – at ~50 HRC, Charpy V-notch can reach ~20 J.
• Excellent temper resistance – resistance to softening is significantly better than H13-type steels, and close to high hot-strength grades.
• No conventional quenching needed – hardness is obtained by solution treatment + aging, which minimizes distortion.
  • This makes them very attractive for high-precision inserts in die casting and injection molds.

But there are important limitations:

1. High cost
   • Very strict cleanliness is required; C is treated almost as an impurity.
   • Double ESR or equivalent processes are typical, driving up cost.
2. Poor machinability
   • Cannot be supplied in a soft annealed state; machining is performed in solution-treated condition, usually above 30 HRC, increasing machining time and tool wear.
3. Sensitivity to prolonged exposure above ~600 °C
   • Long-term operation in this temperature range leads to large amounts of reverted austenite, causing:
     • rapid drop in mechanical properties
     • noticeable dimensional growth after cooling to room temperature. 高

In other words:

• If the die has excellent cooling design and temperature control, keeping local cavity temperatures well below 600 °C, maraging steel inserts can deliver much longer heat-checking life than H13 at comparable or even lower risk of cracking.
• If hot spots are poorly cooled and local surface temperatures approach or exceed 600 °C, maraging inserts may show short life and dimensional drift, which is often misinterpreted as “material” or “heat treatment” problems rather than a working-condition problem.

5. The Role of Process and Cooling Design

Materials are only one part of the picture. The article highlights how process technology can fundamentally change the required properties of high pressure die casting mold steel.

One example is oil-based electrostatic release agent spraying (popularized by Tesla and previously used mainly by Japanese and German OEMs):

• Compared with conventional water-based spraying, electrostatic oil-based spray can substantially reduce thermal shock, improving resistance to heat checking.
• In some documented cases, molds under this process condition can achieve more than five times the heat-checking life of conventional molds.

However:

• Oil-based sprays remove far less heat from the cavity surface.
• Therefore, they demand excellent internal cooling design; otherwise, the next shot will start from a higher cavity temperature, pushing hot spots toward the dangerous high-temperature range.

This shifts the material requirement:

• The need for extreme heat-checking resistance becomes lower.
• The need for high toughness and cracking resistance becomes relatively more important, to ensure complex cooling channels can be safely machined and operated.

Under such changed conditions, a steel grade and heat-treatment strategy specifically tuned to the new process can give much better cost–performance than a conventional “one-size-fits-all” solution.

6. Practical Guidelines for HPDC Mold Steel Selection

Based on the above, here are some practical guidelines when choosing high pressure die casting mold steel:

6.1 Map Your Failure Risks

Before locking a steel grade, define which risk is dominant:

• Thermal fatigue (heat checking)
• Gross cracking / chipping
• Local erosion or wash-out
• Soldering / corrosion

If you already have similar tools in production, collect real data on:

• typical crack locations and patterns
• heat-checking density and depth
• erosion rate and soldering spots.

6.2 Understand Your Thermal Regime

• Use thermal simulation and thermocouples to estimate peak cavity surface temperature at critical points.
• Check how process changes (cooling layout, spray method, cycle time) shift these peaks:
  • If hot spots are kept well below 600 °C, maraging steels or high hot-strength steels can be excellent options for inserts.
  • If temperatures occasionally cross into the 600–700 °C range, high hot-strength steels may survive but maraging steels can suffer dimensional drift and strength loss.

6.3 Use Hybrid Material Solutions

Instead of one steel grade for everything, consider hybrid solutions:

• H13-type all-rounder for most of the cavity, with:
  • high hot-strength inserts (e.g., 3Cr2W8V family) in severe wash-out or heat-checking areas
  • maraging steel inserts where dimensional accuracy and cooling control are excellent.
• Tough lower-alloy or high-toughness materials in heavily loaded backing regions to resist gross cracking.

This “right material in the right place” approach makes better use of each grade’s strengths.

6.4 Avoid Over-Designing One Property

From a life-cycle cost perspective:

• If field data shows that molds with Charpy toughness around 12 J run for years without cracking, pushing toughness to 20 J or more may be wasted; the extra alloying cost would be better invested in:
  • improved cooling
  • better heat-checking resistance
  • optimized gating and venting to reduce hot spots.

The same logic applies to hot strength, soldering resistance, and other properties:
Insufficient properties must be improved; excessive properties can be de-emphasized.

7. Conclusion

High pressure die casting mold steel selection is difficult not because modern metallurgy is weak, but because die working conditions are hard to know and control. Once the key failure modes and thermal regime are clearly defined, the choice between an “all-rounder” steel and a “specialist” becomes much easier:

• Use H13-type hot work steels as a robust baseline for most HPDC projects.
• Introduce high hot-strength or maraging steels as local inserts where the geometry and process truly justify their strengths.
• Combine material selection with smart cooling design and process optimization to get the best life-cost balance.
