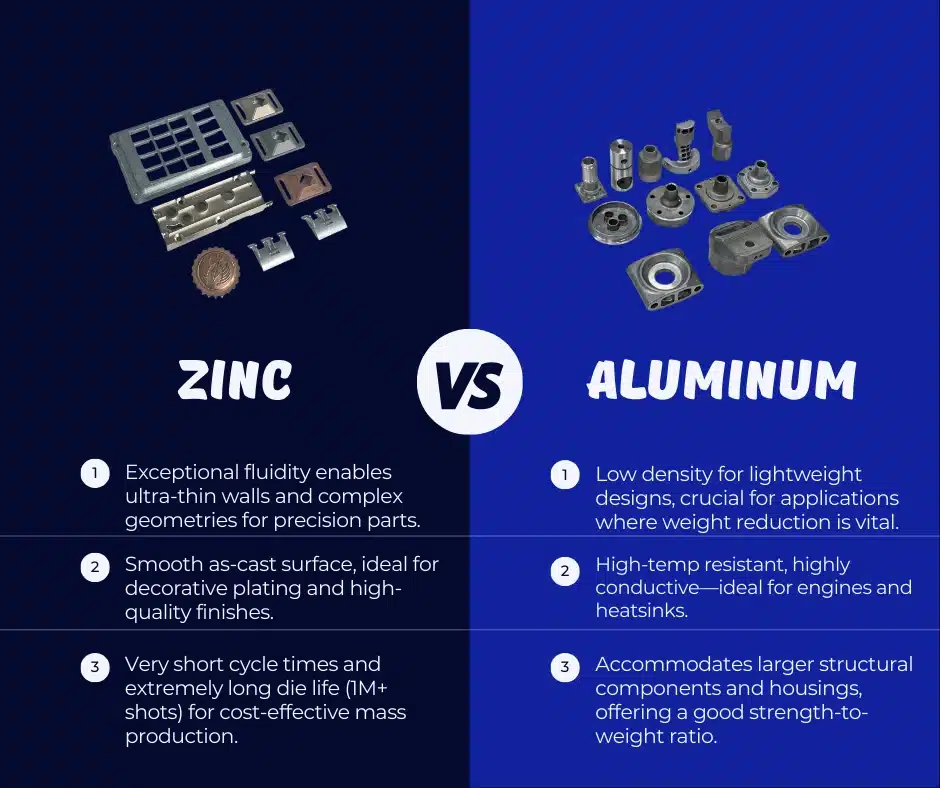

When your design calls for metal parts, the choice often comes down to Aluminum vs Zinc in die casting. Die casting excels at producing intricate, precise, high-volume components, and while several metals can be used, aluminum and zinc are the most directly comparable. Each material brings distinct inherent properties—and the die-casting process further amplifies those traits—so it’s vital to understand how composition and process interact. This article offers a clear, side-by-side look at aluminum die casting and zinc die casting, outlining benefits, trade-offs, and application fit to help you make a confident, data-driven selection.
What Is Zamak Alloy
Zamak is a family of zinc-based alloys with controlled additions of aluminum, magnesium, and sometimes copper—specifically formulated for the hot-chamber zinc die casting process. The name itself is an acronym derived from the German names for its constituent metals: Zink (zinc), Aluminium, Magnesium, and Kupfer (copper).
The role of each element is crucial:
- Aluminum (Al): Typically 4%, it improves mechanical strength, hardness, and overall castability.
- Magnesium (Mg): Added in small amounts (around 0.04%), it refines the grain structure, improves stability, and enhances corrosion resistance.
- Copper (Cu): Included in certain grades (like Zamak 5), it increases tensile strength, hardness, and wear resistance, though it can slightly reduce corrosion resistance and ductility.
The core strengths of Zamak alloys are their extreme fluidity, which allows for exceptional detail replication and ultra-thin walls. This, combined with short production cycles, long die life, and surfaces ready for plating, makes them ideal for producing precise and cosmetically demanding small to medium-sized parts with high repeatability. Common grades include Zamak 3, Zamak 5, and Zamak 7, with Zamak 2 being used for applications requiring higher creep resistance and long-term load-bearing capability.
Key Characteristics of Zinc Alloys (Zamak)
Zinc alloys offer a unique combination of manufacturing efficiency and performance attributes.
- Thin-Wall Capability: Due to their low melting point and high fluidity, Zamak alloys can fill extremely thin sections, with local wall thicknesses of less than a millimeter being possible depending on part geometry and process control.
- Cosmetics: Parts emerge from the die with a smooth, dense “as-cast” skin that is an excellent substrate for polishing, decorative plating (chrome, nickel, brass), powder coating, and painting.
- Production Efficiency: The hot-chamber die casting process used for zinc is extremely fast. This enables very short cycle times, allows for high cavitation (more parts per shot), and contributes to a very long die life, often exceeding one million shots.
- Dimensional Repeatability: Zinc alloys exhibit low shrinkage and minimal warping, resulting in excellent part-to-part consistency. This makes them perfect for applications requiring tight tolerances.
Limitations: Key trade-offs include a higher density compared to aluminum, making it heavier. Its service temperature is moderate, and it can be susceptible to creep (slow deformation) under sustained loads, a factor that must be managed in the design phase.
What Is Aluminum Alloy
Aluminum alloys used in casting include a wide range of compositions, such as the popular A380/ADC12, the highly fluid A413 for leak-tight applications, and heat-treatable grades like A356/A357. They are cast using processes like high-pressure die casting (HPDC), permanent mold, and sand casting.
Unlike zinc, many aluminum alloys can undergo heat treatment to enhance their mechanical properties. High-pressure die-cast parts are often given a T5 temper (a stabilizing artificial aging process), while parts made via permanent mold or sand casting (like A356/A357) are commonly subjected to a full T6 solution heat treat and age for maximum strength.
The core strengths of aluminum are its low density (lightweight nature), superior performance at higher temperatures, good thermal conductivity, and a broad range of mechanical properties achievable through alloy selection and heat treatment.
Key Characteristics of Aluminum Alloys
Aluminum is the go-to choice for applications where weight, temperature, and structural performance are paramount.
- Strength & Stiffness-to-Weight: Aluminum offers a good balance of mechanical properties that can be tuned via T5 or T6 tempering (depending on the casting process), making it a strong and stiff yet lightweight option.14
- Thermal Performance: With good thermal conductivity, aluminum is an excellent choice for parts that need to dissipate heat, such as heatsinks, electronic enclosures, and automotive inverter housings.15
- Size Envelope: The cold-chamber process used for aluminum accommodates larger shot sizes, making it well-suited for bigger components like structural brackets and large housings.
- Finishing: Powder coating and painting are widely used and cost-effective finishing options. Anodizing provides excellent corrosion and wear resistance but is most effective on wrought alloys (like 6xxx series) and less so on high-copper HPDC alloys.
Limitations: The casting process for aluminum generally results in longer cycle times and shorter die life compared to zinc. Replicating ultra-fine details and achieving the same smooth as-cast finish as zinc can also be more challenging.
What Is Different Between Aluminum Alloy and Zinc Alloy
Aluminum and zinc die casting serve overlapping but distinct niches. Zinc (Zamak) excels at producing parts with tiny features, ultra-thin walls, and plating-grade cosmetic surfaces. Its extremely fast cycle times and long die life make it ideal for high-volume production of small to medium-sized components.
In contrast, aluminum leads when weight reduction is a priority, operating temperatures are higher, or larger and more structural geometries are required. It offers strong thermal performance and the flexibility of heat treatment to enhance its mechanical properties. Your decision should ultimately balance the demands of your product’s geometry and size, production volume and economics, finishing and sealing requirements, and in-service performance and temperature exposure.
Side-by-Side Comparison
| Criterion | Zinc (Zamak) | Aluminum (HPDC/PM/Sand) |
| Density / Weight | Higher (~6.6 g/cm³ for Zamak 3) | Lower (~2.7 g/cm³) |
| Thin-wall & Detail | Excellent (hot-chamber, low melt point) | Good (≈1–3 mm typical walls) |
| Cycle Time | Very short | Moderate |
| Die Life | High (often 1,000,000+ shots) | Lower (≈100,000+ shots) |
| Cosmetics / Plating | Plating-ready, easily polished | Powder/paint common; anodizing limited on high-Cu HPDC |
| Temperature Capability | Moderate | Better (engine bays, thermal parts) |
| Leak-Tightness | Very good (dense as-cast skin) | Good; A413 alloy excels |
| Thermal Conductivity | Good | Excellent (heatsinks, inverters) |
| Typical Part Size | Small–Medium | Medium–Large |
| Unit Cost @ Volume | Low (due to fast cycles & long die life) | Low–Moderate |
Surface Finishing for Die-Cast Aluminum vs Zinc
- Zinc (Zamak): The premier choice for decorative finishes. It readily accepts Cu–Ni–Cr decorative plating, electroless nickel, and various conversion coatings followed by powder coat or paint. A simple polish or vibratory finish can also yield a high-quality look. Proper pretreatment is vital to avoid surface defects like blistering.
- Aluminum: The workhorse finish is a conversion coat followed by powder coating or painting. Anodizing is an option but works best on low-copper alloys and is less common for high-pressure die castings. For electronic applications, specialized EMI/RFI shielding stacks can be applied.
Properties (What You Can Expect)
- Zinc: Delivers strong as-cast properties and superb dimensional repeatability without secondary operations. However, designers must account for potential creep at elevated temperatures under sustained load.
- Aluminum: Offers a tunable strength profile (via T5/T6 temper, process-dependent), a better stiffness-to-weight ratio, and excellent thermal performance.
Applications
- Zinc: Decorative hardware (locks, hinges, handles), appliance and consumer electronic shells, small pressure-tight parts (valves, fittings), and precise mechanical components.
- Aluminum: Structural automotive brackets, large electronic housings, thermal management components (heatsinks, inverter enclosures), and lightweight assemblies.
Hot-Chamber vs. Cold-Chamber Casting: A Process Dictated by Physics
The die casting process is bifurcated into two distinct methods, and the choice is non-negotiable, determined entirely by the alloy’s melting point and chemical properties.
- Hot-Chamber Die Casting (Zinc): This process is characterized by its integration and speed. The injection mechanism, a plunger operating within a “gooseneck,” is submerged directly within the furnace of molten metal.5 For each cycle, the plunger forces a precise amount of metal directly into the die cavity. This is an elegant, highly automated, and rapid system. It is only feasible for alloys with low melting points, such as zinc, tin, and lead, which do not chemically attack or erode the steel components of the injection system at operating temperatures.7
- Cold-Chamber Die Casting (Aluminum): This method is required for alloys with high melting points like aluminum, magnesium, and copper. Because molten aluminum is highly corrosive to steel, it cannot be in constant contact with the injection system. Instead, the metal is held in a separate furnace. For each casting cycle, a precise amount of molten aluminum must be ladled—either manually or by a robot—from the furnace into a hardened steel “cold” shot sleeve.6 A hydraulic plunger then drives this shot of metal into the die cavity.32 This multi-step process is inherently slower, introduces thermal inefficiencies, and creates more opportunities for process variability and contamination.
Cost
- Zinc: Often yields the lowest unit cost at high volumes due to its extremely fast cycles and exceptional die life, which amortizes the tooling cost over more parts. Plating adds cost but delivers a premium cosmetic finish.
- Aluminum: Also offers a competitive piece price. Finishing like powder coating is cost-effective. However, the total cost can be affected by the need for secondary machining on critical faces or threads.
Cycle (Throughput & Tooling)
- Zinc: Uses the hot-chamber process, where the injection mechanism is submerged in molten metal. This allows for the fastest possible cycles, high cavitation, and long die life, making it ideal for massive throughput.
- Aluminum: Requires the cold-chamber process, where molten metal is ladled into the shot sleeve. This results in moderate cycle times and lower tool life due to the higher temperatures and abrasive nature of aluminum.
When Zinc Wins (Zamak Alloys)
Zinc alloys, often referred to by the trade name Zamak, are the go-to choice for specific applications where their unique properties provide a distinct advantage.
- Use Cases: Intricate lock and hinge mechanisms, cosmetic hardware (knobs, handles), housings for appliances and consumer electronics, and small, pressure-tight components.
- Why It Wins: Zinc has a low melting temperature, which is the key to its success. This allows for the use of the hot-chamber die casting process, leading to extremely long die life (often over a million cycles) and very short cycle times. Its excellent fluidity allows it to fill incredibly thin sections and replicate fine details with precision. This results in a smooth, near-net-shape part that is an ideal substrate for high-quality electroplating.
Common Grades:
- Zamak 3: The most common general-purpose zinc alloy, offering an excellent balance of properties and long-term stability.
- Zamak 5: Contains more copper, which increases tensile strength and hardness.
- Zamak 2: The highest strength and hardness in the family, often used for applications requiring better creep resistance.
- Zamak 7: A high-purity alloy with lower magnesium content, offering the best castability and fluidity for ultra-thin-walled components.
- Limitations: Zinc’s higher density makes it heavier than aluminum. It is not suitable for high-temperature service and can be susceptible to creep (deformation under sustained load), which must be considered in structural designs.
When Aluminum Wins
Aluminum is one of the most versatile and widely used die casting materials, prized for its balance of strength, weight, and thermal properties.
- Use Cases: Structural brackets in automotive and industrial equipment, larger electronic enclosures, thermal management parts (heatsinks, inverter housings), and any assembly where weight reduction is a priority.
- Why It Wins: Aluminum’s primary advantage is its low density, offering an excellent strength-to-weight ratio. It performs reliably at higher temperatures where zinc would falter. Certain alloys can be heat-treated to achieve mechanical properties comparable to some steel components. Furthermore, its good thermal conductivity makes it a natural choice for parts that need to dissipate heat.
Common Grades:
- A380 / ADC12: The workhorse of high-pressure die casting (HPDC), offering a great combination of castability, mechanical properties, and cost-effectiveness.
- A413: A silicon-rich alloy known for its excellent pressure tightness, making it ideal for hydraulic or pneumatic components.
- A356 / A357: Typically used in sand or permanent mold casting processes, these alloys respond very well to T6 heat treatment, resulting in superior strength and ductility.
Notes: Standard high-pressure die-cast aluminum parts often undergo a T5 aging process. Achieving a full T6 temper requires a process that ensures low porosity (like vacuum HPDC, sand, or permanent mold) and must be carefully validated.
FAQs
